CONCEPT
BASIC SOLUTION

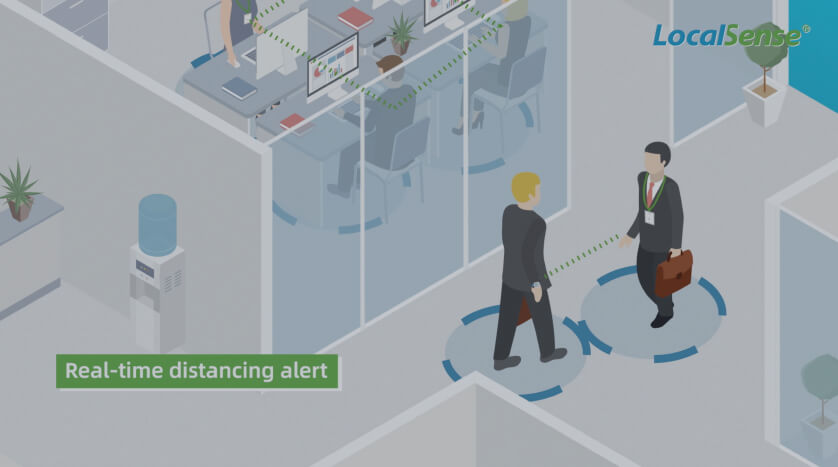

SOCIAL DISTANCING
•Ranging between tags, no fixed anchor needed
•Alarm / vibration / signal light triggered when intruding 6ft social
safe zone
•Intruding incident information including ID / time / duration recorded
in tags
ADVANCED SOLUTION
CONTACT TRACING
•Only one gateway is needed at the entrance of factory or
hospital
• Wireless data transfer: UWB gateway receives contact record from tags
when people entering or leaving the factory or hospital
•UWB gateway records the entering and leaving time, and indicates
battery status on the dashboard

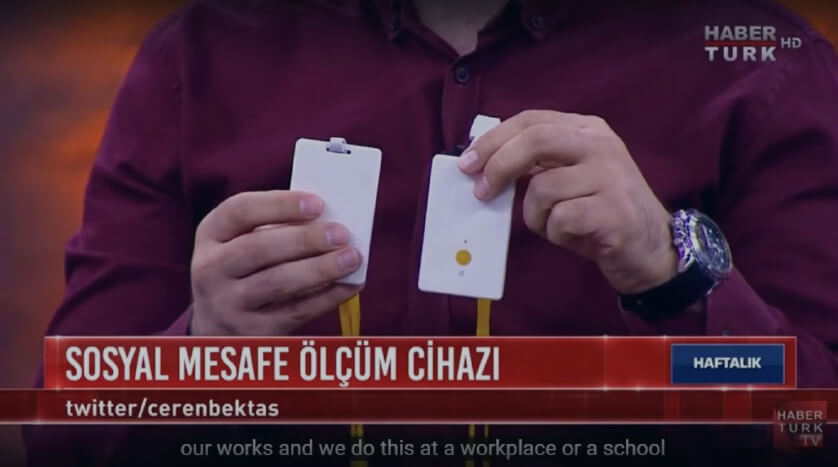

DEMONSTRATION
FEATURES
HIGH RANGING
PRECISION
PRECISION
-/+ 0.1m precision, 10 times more accurate than Bluetooth
STRONG DATA
PROTECTION
PROTECTION
Data encryption. Stored on-premise / on cloud, not Tsingoal's
server
TAG-TO-TAG
RANGING
RANGING
No positioning / installation required for ranging, data
privacy-friendly
EASY TO DEPLOY
AND OPERATE
AND OPERATE
No installation required for social distancing; for contact
tracing, Basic IT knowledge required
HIGH
CAPACITY
CAPACITY
Support 40 tags in small room with refresh rate of 1s
EFFICIENT POWER
CONSUMPTION
CONSUMPTION
Rechargeable battery works on average 24h
LARGE STORAGE
CAPACITY
CAPACITY
Store more than 1000 contact records in tag
FLEXIBLE DATA
COLLECTION
COLLECTION
Gateway can be placed anywhere to collect data
BASIC SOLUTION
TAGRanging with each other
Tb1000-g
Radio frequency : UWB 6.1 ~ 6.9 GHz
Battery type : Rechargeable LI 450 mAh
Working hours : average charging cycle 24h* (Micro USB)
Operating temperature : -10℃~ +60℃(14ºF) to (140ºF)
Storage temperature : -20℃~ +70℃(-4ºF) to (158ºF)
Working humidity : 10% ~ 90% non-condensing
Storage humidity : 5% ~ 95% non-condensing
◉ Buzzer
◉ Vibrator
◉ Alert light (red light blinks for signal)
◉ Button (Mute 10 seconds / Battery inspect)
Tb1000-w
Radio frequency : UWB 6.1 ~ 6.9 GHz
Battery type : Rechargeable LI 600 mAh
Working hours : average charging cycle 24h* (magnet
port)
Operating temperature : -10℃~ +60℃(14ºF) to (140ºF)
Storage temperature : -20℃~ +70℃(-4ºF) to (158ºF)
Working humidity : 10% ~ 90% non-condensing
Storage humidity : 5% ~ 95% non-condensing
Waterproof rating : IP65
◉ Buzzer
◉ Vibrator
◉ Alert light (red light blinks for signal)
◉ Button (Mute 10 seconds / Battery inspect)
ADVANCED SOLUTION
Besides social distancing, advanced solution also offers contact
tracing. It is composed of basic solution (tag) plus gateway and software
GATEWAY
Receive contact record and config tags
U3000-t
Data Interface : Standard Ethernet
Power Interface : POE / DC 24V
Working Temperature : -20 ~ 70℃
Contact recording and
tracing
•Our software enables users to bind tag IDs
with user information(e.g. employee’s ID), set define safe distance, configure the alarm
signal, get historical contact report etc.
•Contact tracing report: you can find the close
contact information such as contact ID, contact duration, start time, minimal contact distance
and tag battery status etc.
•If one of your employees, unfortunately,
tested positive, our contact tracing report allows your company to quickly and accurately find
employees at the potential risk, so you can notify them and take corresponding actions.
•We offer FREE remote technical support service
for the software installation.
API
We provide open API (http API) supporting you to build your own
platform.
DEMO KIT
BASIC DEMO KIT
•10
Wristband Tag - Tb1000-w
•10 Badge
Tag - Tb1000-g
•1 charger
for each Tag included
ADVANCED DEMO KIT
•10
Wristband Tag - Tb1000-w
•10 Badge
Tag - Tb1000-g
•1 Gateway -
U3000-t
•1 Software
•1 charger
for each Tag included
DEVELOPER DEMO KIT
•10
Wristband Tag - Tb1000-w
•10 Badge
Tag - Tb1000-g
•1 Gateway -
U3000-t
•1 Software
•API (http
API) to build your own platform
•1 charger
for each Tag included
CERTIFICATION
